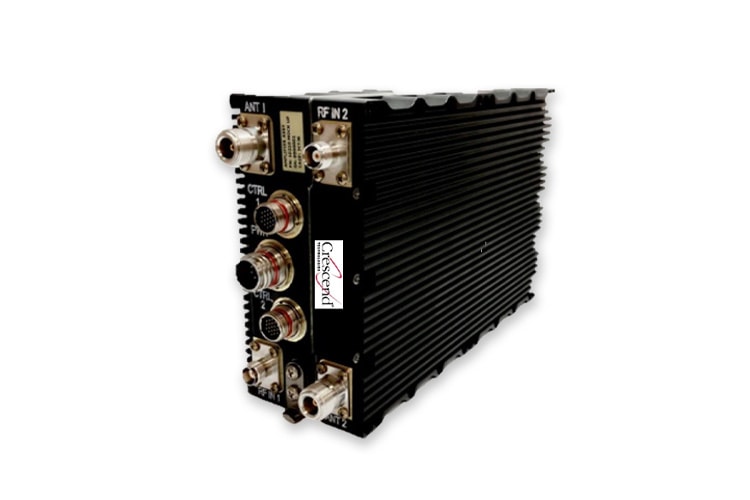

Multi-Channel Wide Band Amplifier (MCA)

Multi-Channel Wide Band Amplifier (MCA)

Defense Military Amplifier

The Dual Channel High Power Amplifier is a small, lightweight amplifier fully capable of extending the communication range for legacy and next generation waveforms.  The combination of two internal frequency channels (UHF, VHF/L-Band) provide for User Definable simultaneous 2 channel operation. The compact design is an ideal choice for airborne applications and compliant to MIL STD 704E.

Performance Advantages

  • Configurable waveforms/frequency band for TSM-X, VHF/UHF, AM/FM LOS, SRW, SINCGARS, ANW2, ATC, HAVEQUICK I/II, P25, DAMA, SATCOM
  • Compact Size, Weight, and Power
  • Addresses Airborne Rotary/Fixed Wing (manned/unmanned) platforms
  • Capable of simultaneous Dual Channel operation
  • DC (aircraft bus power) input from 18-36V, nominal power consumption
  • RF Input frequency sensing
  • Configurable to any airborne radio interface
  • Cosite mitigation for adjacent channels
  • 10% offset TX & RX filters (-30dBc)
  • Form factor: 10.0”L x 3.0”W x 6.0”H w/o connectors
  • Weight: 8.5lbs
  • Automatic Leveling Control (ALC)
  • VSWR sensing
  • Selectable RX one or two LNA gain stages
  • Environmentally sealed design meeting all MIL STD 810 requirements
  • Flight Safety qualified
  • Failsafe by-pass path
File could not be opened. Check the file's permissions to make sure it's readable by your server.

*Will support battery operation as required.

Finish can be specified, otherwise chemical conversion coating clear as standard.
