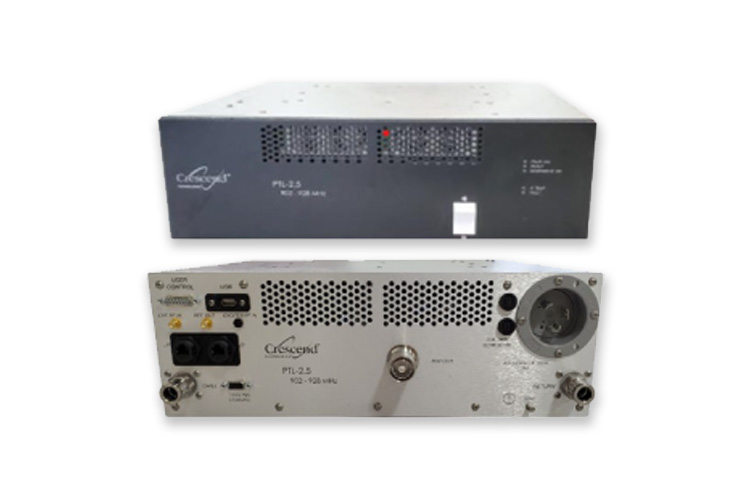

2.5kW L-Band 902-928 MHz Solid State High-Power Microwave Generator

Key Features
- Internal frequency and power control
- Software control utilizing a Windows™ based GUI
- Frequency sweeping capability
- Built in Forward and Reflected power measurement
- Distributed multi‐processor control architecture
- Proprietary 7/16 DIN female coaxial output (Quick Connect adaptor to threaded 7/16 DIN female included)
Microwave Power Output
Model | Max Nominal Power |
---|---|
PTL-2.5CI-PREHD-0 | 2.5 KW |
- Power set resolution input values: 1 watt
- Rugged LDMOS transistors
- Comprised of Qty 1, 2.5 kW modular power blades
- Integrated RF output timer
- Power measurement indicators: Forward & Reflected
- Max. mismatch: 10 dB RL/2:1 VSWR
Frequency Range
Operating Modes
Control System
Software Highlights
Frequency Range
- 902‐928 MHz
- Frequency Step Size: 100 kHz
Operating Modes
- Fixed, single frequency
- Internal Pulse Mode:
- 1Hz-1000Hz pulse rate (frequency)
- 10-90% Duty Cycle
Control System
- Windows-based interactive control software
- Required E‐Stop loop connection
- PLC‐type hardware control interface with 24VDC and 20ma current loop inputs and outputs
- Arc detection emergency stop inputs
Software Highlights
- Point‐Click power and frequency setting across the band
- Forward/Reflected power and return loss indicators
- Best frequency selection based on load measurements
- Variable power over frequency sweep creation tool
- Programmable initial pulse for applications such as gas / plasma ignite
Power Supply
Dimensions and Weight
Facility Requirements:
Power Supply
- AC mains: 220 VAC two-phase 50/60Hz
- 50-volt switch mode power supply
- Line-to-RF-conversion efficiency at full power: 50%
- Air Cooled
Dimensions and Weight
- 6” (15.24cm) H x 18.5” (46.99cm) D x 18” (45.72cm) W
- Weight: 37 lbs. (16.78kg)
Facility Requirements:
- Input Water Flow Min: 2.5 GPM (9.5LPM)
- Input Water Temperature: 15⁰C – 20⁰C
- Input Water Pressure: 60 Max PSI (2.5 Min–4.0 Max atm)
- Environmentally Controlled:
– Ambient Room: 15⁰C – 25⁰C
– Relative Humidity: < 95%
– Conditions must be non-condensing - Water Hook Up: SS water quick connects 100 PSI rated (1/2” OD nylon)
- Heat Load: ~10K BTU/hr @ Full Power
These are preliminary specifications. The information contained herein is subject to change without notice.
